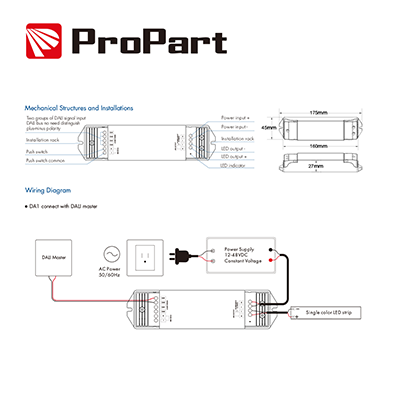

Dimmer DALI 1CH*15A, 180W/360W (12V/24V) - DC

Dimmer DALI 1CH*15A, 180W/360W (12V/24V) - DC

SKU: SD1CH-DA15A---lf
SpecificationValue
DALI indirizzi1
Input currentMax 15A
Input voltage12-48V DC
Output Channel1
Output Voltage12-48V DC
Output current 10A36/48 V
Output current 15A12/24V
Output power-Potenza OUT 12V180 W
Output power-Potenza OUT 24V360 W
Output power-Potenza OUT 36V360 W
Output power-Potenza OUT 48V480 W
PWM Frequenza2 KHz (dafault)
Segnale InputDALI + Push DIM
Temperatura di esercizio-30~+55°C
Tipo ConnettoreMorsettiera
  • Title Download Link
    DA1 48V SD1CH-DA15A.pdf Download
€ 12,86Prezzo
